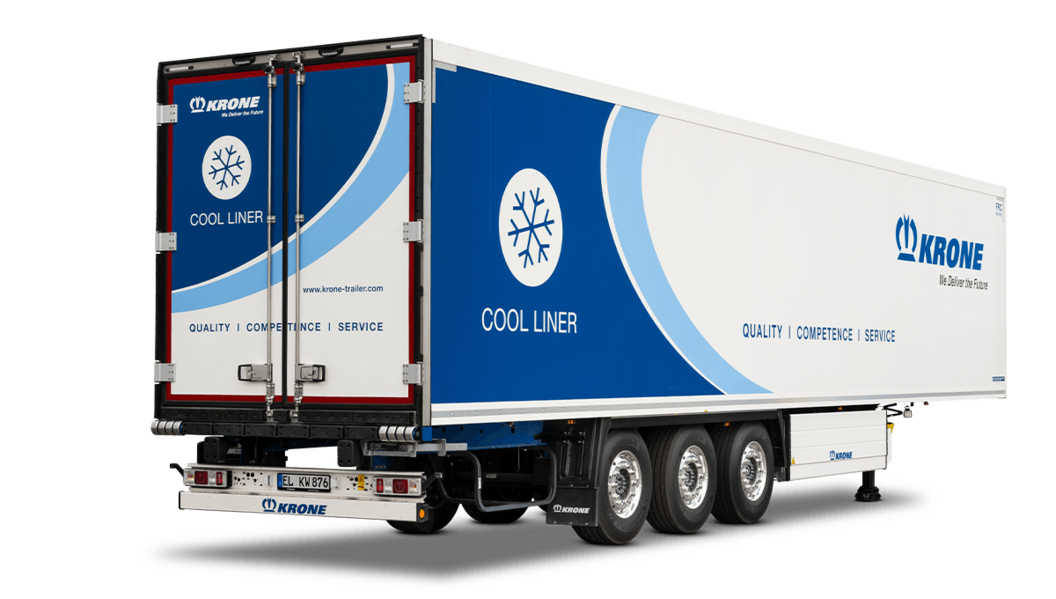

Cool Liner

Type: SDR 27 eL4-S

The conditions in temperature-controlled goods transport are particularly tough - the KRONE Cool Liner is particularly well positioned here. The chassis, structure and equipment are stable and well thought out. From the flexible air duct to the liquid-tight floor pan to the stainless steel rear closures - thanks to many detailed solutions developed with customers, the Cool Liner meets the highest demands.

Particularly helpful: With KRONE Telematics you are always well informed online about the position, condition and temperature of your transports.

day

Advantages
Features
Impressions
Technical data
Downloads

Superior in any concern.

Advantages at a glance

Excellent insulation
Continuous chassis
Practical rear portal
Impact-optimized substructure
Liquid-tight floor pan

Always a plus on equipment.

Simply inimitable

Practical rear gantry

The stainless steel rear gantry has been designed to be suitable for both docks and ramps. Door hinges are recessed at the sides to allow an optimal door opening angle. As an option, four door locks are available.

Separate underrun protection and lighting support

Underrun protection and lighting supports are mounted in a protected manner and can be replaced individually.

Good coupling protection

Diagonal trussing of the rear guides ensures efficient protection of the trailer against compressive strains.

Reliably secured

Customs-compliant security of the hinge fittings.

Full-length chassis

The Cool Liner features a full-length chassis. The tensile forces are transmitted to the chassis. This protects the box body superstructure when coupling and uncoupling the vehicle.

Safe telescopic ladder

The step ladder has large, clearly visible steps to ensure convenient climbing and optimum safety at work.

Large pallet box

The pallet box has room for 36 Euro pallets. It features an innovative cover guide system. With a coupling height of 1,150 mm, the ground clearance is approximately 350 mm

Bright internal lighting

The internal superstructure lighting is provided by four high-intensity LED lights positioned under the roof.

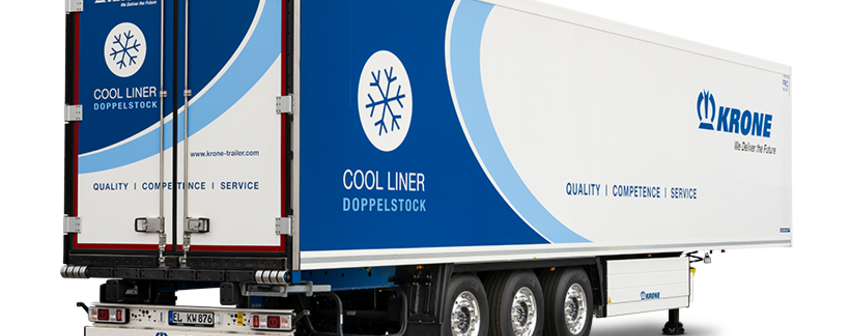

Cool Liner Doubledeck

Practical guide rails

Double-deck guide rails installed flush in the wall in accordance with HACCP. Horizontal markings on the guide rails make it easier to adjust the height of the double-deck beams.

Rearward load securing

Barrier beams for rear load securing.

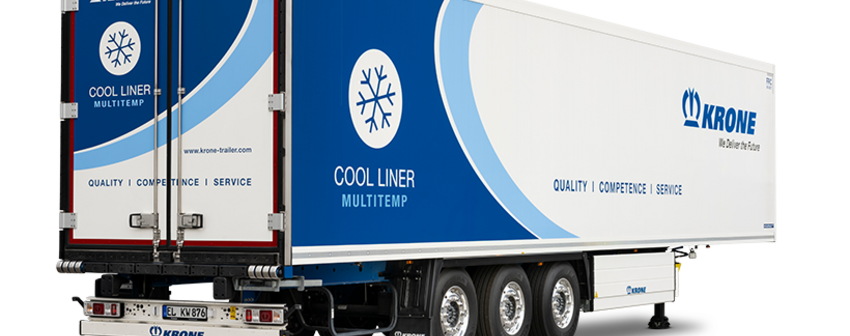

Cool Liner Multitemp

Cooling zone arrangement

The partition, which can be moved throughout the whole length of the superstructure to create different temperature zones, is very well insulated and tested according to ATP. The upper lock unit, using innovative balancer technology provides extremely easy operation. As an option, a partition fan can be integrated in the lock unit. The control unit for the partition fan is located on the left outer front wall.

Additional evaporator

If the load compartment is full, everything depends on good air flow: optional venting ducts are integrated into the rear doors for optimum air circulation. The evaporators are available in different versions.

Evaporation protection

A stainless steel frame protects the evaporator while loading and unloading.

Multiple chamber systems

KRONE offers a multi-variable cooling zone arrangement with a partition in the longitudinal direction. This multi-temp solution offers up to three individual controllable chambers for transporting fresh and frozen goods.The transverse partitions can be positioned as desired along the length.

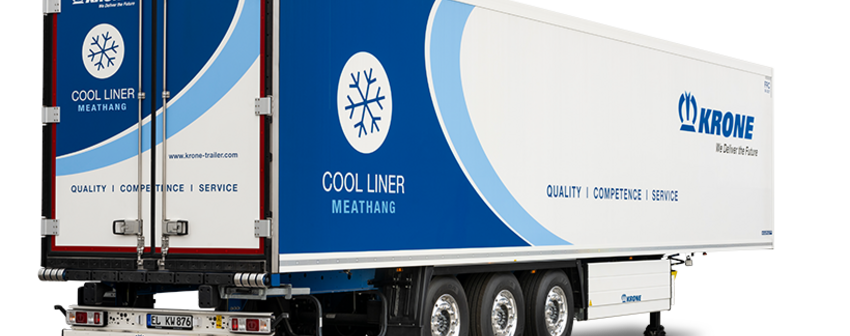

Cool Liner Meathang

Meat-hanger application

Various models for suspension of meat are available that comply with country-specific requirements. Available are meat suspension rails with 60 mm or 45 mm diameter. Hook catch and Hook separation guard as standard equipment. On request, with hook parking rail or rack.

Cool Liner Pharma

The German Medicinal Products Act has specific requirements concerning storage and transport of pharmaceutical products. The following passage can be found in Article 7 of the regulation: “ Raw materials, compounds and end products as well as samples must be stored in such a way that quality is not adversely affected and that mix-ups are avoided. Critical parameters concerning the storage and transportation must be checked and recorded so that compliance with the requirements can be confirmed. [...] The storage containers and the internal transport containers must be designed so that the quality of their contents is not affected.“

The Cool Liner Pharma provides an exact model of how these legal requirements can be met. This is verified by Pharmaserv GmbH & Co. KG as well as the European Institute for Pharma Logistics GmbH. Pharmaserv certifies the KRONE trailer at the Lübtheen production plant. In functional tests carried out over several days, the Cool Liner equipped with KRONE telematics is tested under the toughest conditions. Numerous data loggers are placed in pre-defined positions in the vehicle superstructure to provide continuous monitoring of the temperature data and thereby a homogeneous temperature distribution in the superstructure. In addition, there is permanent, external monitoring via the KRONE Telematics-Portal. The result: The values required by the pharmaceutical industry, such as high insulation value, homogeneous temperature distribution, along with stringent hygienic requirements are all easily met using a combination of high grade materials and expert workmanship.

In addition, KRONE has also received the EIPL certificate for the Cool Liner. This certificate is issued by the European Institute for Pharma Logistics GmbH which specialises in knowledge transfer and services at the interface between the pharmaceutical and the logistics industries.
KRONE offers the Pharmaceuticals-certified Cool Liner with a variety of equipment options. The fridge units can be installed for single or multi-temperature operation.

Pharma certificate

The Pharma certificate confirms that the Cool Liner uses exemplary technical equipment from the sector of refrigeration technology as well as insulation properties that permit optimal transportation under strict temperature requirements. In order to meet the stringent demands of the pharmaceutical industry, the Cool Liner “Pharma” is also equipped with an integrated telematics system that meets the future requirements of the EU GDP.

The most important advantages

KRONE Pharma qualification:

Expense for IQ (installation qualification) and OQ (operational qualification) is not required (Although in practice, it is required for all vehicles).
Safety and the pharmaceutical suitability of the trailer.
Savings in time and costs.
Where required, assistance with PQ (service qualification).

KRONE Pharma qualification:

Expense for IQ (installation qualification) and OQ (operational qualification) is not required (Although in practice, it is required for all vehicles).
Safety and the pharmaceutical suitability of the trailer.
Savings in time and costs.
Where required, assistance with PQ (service qualification).

KRONE Pharma qualification:

Expense for IQ (installation qualification) and OQ (operational qualification) is not required (Although in practice, it is required for all vehicles).
Safety and the pharmaceutical suitability of the trailer.
Savings in time and costs.
Where required, assistance with PQ (service qualification).

Door Protect High Security

Best possible anti-theft protection with the KRONE Door Protect; the rear door is automatically locked when it is closed and it can only be opened again when the dispatcher has released the door using the KRONE Telematics and the driver has entered the corresponding security code. In addition to the rear door, an electronic internal roof and side wall monitoring system is available as an option. If someone tries to open the rear door without the code, an optional acoustic alarm can be triggered.

Cool Liner Huckepack

Simple railway transport

Cool Liner Duoplex Steel are also be supplied with crane pockets and suitable equipment for combined traffic.

Robust equipment

High strength loading points ensure secure and safe handling for cranes and fork-lift trucks.

Retractable spray suppression

The spray suppressors can be stowed during rail transport.

Cool Liner City

Inner city deliveries demand cargo transportation: what is needed here is a flexible, solid and, above all, versatile trailer that can be well handled, even if there is not much space.

The Cool Liner City is tailored to these requirements: a robust running gear with solid end beam for frequent docking at ramps, a low-maintenance, quick-reaction one-bar forced steering and a chassis with long-term value preservation due to cataphoretic painting and powder coating. The Cool Liner City also impresses overall with its proven KRONE quality. The City Chassis is available as single, dual or triple axle models for 27 or 33 euro pallets. The Cool Liner City can be used flexibly with a standard tractor unit and is more manoeuvrable than any solo HGV with the same load length.

Extreme mobility

The forced steering is a proven one-bar system, integrated in the running gear with low maintenance. The steering angle of 25 degrees allows manoeuvring in very restricted space.

Lifting arm equipment

With loading board wall equipment, both the chassis and the lighting rack are provided with a cutout adapted to the lifting arms of the tail lift.

Aluminium brink wedge

An aluminium brink wedge comes as standard with a fixed tail lift behind the rear doors. The brink wedge serves to close the gap between loading floor and platform.

PIEK equipment

To meet the PIEK requirements for noise reduction, a PIEK design floor is optionally available. The side kick-strips in the lower area of the side walls are given a noise-reducing plastic coating. PIEK design tail lifts and cooling systems complete the supply range.

The PIEK alternative

The future of inner-city distribution.

In the Netherlands, England, Italy and Germany statutory regulations about noise emissions during early morning and late night delivery are applicable. In order to meet the legal requirements, the company has been working on the development of noise-reduced vehicles and their components since 1999. The PIEK programme (PIEK = peak, to be understood as the permissible peak noise load) has led to development and launch of noise-reducing products.

Cooling units and co.

Celsineo cooling system

The perfect solution through modularity. With Celsineo, the cooling power is distributed among three plug & play cooling modules constructed in the same way, each containing an independent, hermetically sealed refrigerant circuit with just a few components. You will find further information at www.celsineo.com

learn more

Refrigeration systems and temperature recorders

Refrigeration systems and telematic temperature recorders from all leading manufacturers are available to suit your preference. An optional LED tank display informs the driver about the fuel supply for the refrigeration system.

Krone Telematics temperature recorder TR

By using the certified KRONE temperature recorder TR via Telematics, the conventional temperature recorder on the front wall of the temperature recorder is no longer required. Using the KRONE Telematics Portal, you are able to send the respective verification temperatures directly to your customer in a PDF by email or fax, even before the load arrives at your customer's location.
This does away with costly waiting times for the driver as the temperature verification can already be checked before the vehicle arrives. KRONE Telematics including the KRONE temperature recorder therefore serves as a multi-functional device. In addition to the classic telematics data, the temperature data in the superstructure is also recorded, saved and transmitted on request.
The KRONE TR temperature recorder thus saves time and money, while protecting the environment at the same time.

Optional control panel

The cooling device can optionally also be controlled with a control unit that is embedded in the inner rear side wall.

LED tank display

A capacitive tank sensor, in conjunction with a clearly visible LED tank display on the front wall, provides information about the remaining fuel supply in the diesel tank of the refrigeration unit. Can also be combined with KRONE Telematics.

Fridge unit protection bars

Heavy duty galvanised steel tubes are used to protect the refrigeration system.

Chassis

Roll compression buffer

Four stainless steel rollers with shock absorbing cores protect the rear of the vehicle when docking. They also compensate for variable loading dock heights.

Compression buffer

Tough to break: that is the compression buffer. Extremely robust steel impact protection at the tail end with impact-absorbing rubber blocks for damping docking forces.

Butt Rolls

Butt rolls as an alternative collision protection. Combined here with a Delta ram profile and 2 large rear buffers for optimum protection.

Buffer strip

A buffer strip under the rear frame offers additional protection. The buffer strip consists of rubber profiles, each of which can be individually replaced.

Additional docking protection

Two solid rubber rear buffers transfer the docking forces directly to the main chassis main beams.

Sturdy underrun protection

A underrun protection with reinforced skid shoes is available for tough every day transport.

Ferry rings

Rings are bolted to the chassis for secure lashing during ferry transit. Suitable lashing points are integrated in the floor in the flat neck area.

Secure docking

The latest sensors help to avoid damage while docking at the loading ramp.

Box body

Split strapping rails

In practical use, the advantages of the split strapping rails in combination with doubledeck loading can be clearly seen.

Equipment acc. to HACCP

Cooler tailored to customer dimensions: with recessed, HACCP-certified lashing, double-deck rails and kick strip.

Swivelling rebound plate

The folding rebound plate is made of temperature-resistant plastic for effortless access to the cooling system and optimised service.

Venting shutters

Optional equipment: ventilation flaps in the front and rear walls.

Vario Lock

Vario Lock load securing system with perforated rails integrated in the floor and under the roof. Optimum equipment for securing flower containers.

Strip curtain

The insulation strip curtain is in three parts. It can either attach to the rear or slide along the length of the trailer.

Double lock rods

For additional stability and security, the container door is also available with double lock rods.

Practical door restraint cord

As an alternative to the metal version, cord door restraints are available.

Insulated roller shutter door

An insulated rolling door, certified according to Code XL, saves you time and makes handling on the ramp easier.

Side door

The optional side door is the ideal solution when partial shipments must be loaded or unloaded in one temperature zone

Functional water drainage

An optional water drain embedded in the floor ensures controlled draining of liquid load residues or cleaning liquids.

Fish drain

For transporting fresh fish, a specially designed water gutter is embedded transversely in the floor in front of the rear doors. With an optimised capacity and central water drain, it enables controlled disposal of incurring leakage water and, thanks to the integrated removable revision covers, it can be easily cleaned without too much effort. A spacious stainless steel tank is used to collect the liquids.
